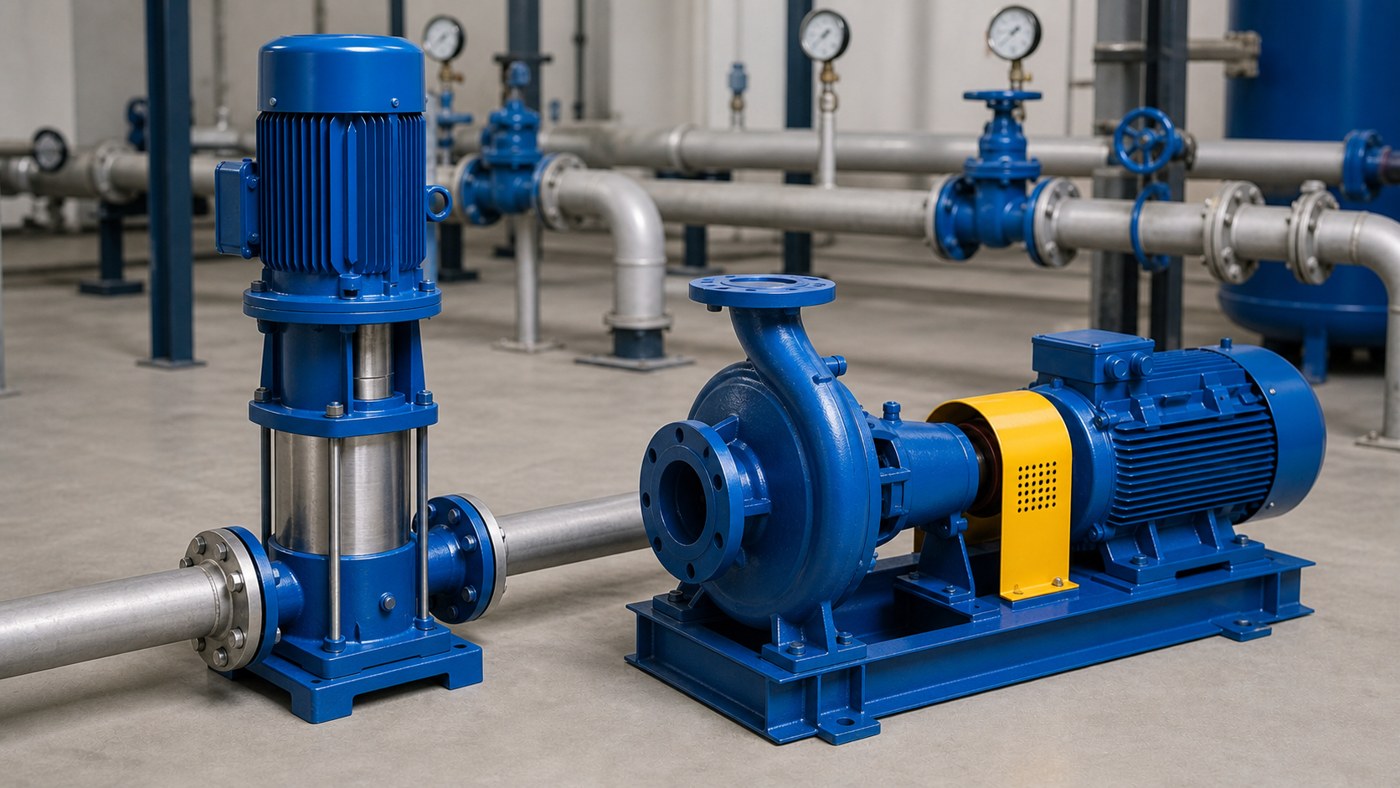

Priming a vertical inline pump means filling the pump casing and suction piping with liquid and removing trapped air before the first start. Without proper priming, the pump will run dry, overheat, lose prime during operation, or fail to develop pressure. This guide walks through the field procedure, the system checks that prevent air re-entry, and the startup verification steps that confirm successful priming.
Key Takeaways
- Vertical inline pumps in flooded suction installations often self-prime if the suction line stays full; pumps lifting from a lower source require manual priming or vacuum assist.
- Air trapped in high points, valve pockets, or the pump volute will cause loss of prime, noise, vibration, and seal damage even after initial fill.
- Confirm vent plug locations, suction line slope, isolation valve positions, and foot valve condition before attempting to prime.
- Startup verification requires checking discharge pressure, motor current, flow delivery, and unusual noise within the first 30 seconds of operation.
When Vertical Inline Pumps Require Priming
A vertical inline pump mounted above the liquid source in a suction lift arrangement must be primed before each startup if the suction line drains when the pump stops. Pumps in flooded suction installations, where the pump centerline sits below the source liquid level, typically remain full between cycles and do not require repeated priming.
Priming becomes critical in these scenarios:
- Initial startup after installation or maintenance work that opened the suction piping.
- Systems without a foot valve or check valve that allow the suction line to drain back to the source.
- Suction lines with high points, elbows, or tees that trap air pockets.
- Pumps handling liquids with entrained air, foam, or vapor near the operating temperature.
- Fire pump systems during quarterly or annual flow tests when the suction tank empties or air enters through a suction strainer inspection port.
Pre-Priming System Checks
Before filling the pump, verify the system setup to avoid wasting time on a priming attempt that will fail due to air leaks, blockages, or valve misalignment.
| Check Point | What to Verify | Why It Matters |
|---|---|---|
| Suction line slope | Continuous rise from source to pump inlet, no high points or sags | Trapped air pockets prevent complete filling |
| Suction valve | Fully open, no debris in strainer basket | Restricted flow causes low suction pressure and cavitation |
| Discharge valve | Closed or cracked open slightly | Starting against a closed valve reduces motor load during priming |
| Vent plug or air release valve | Accessible at the top of the pump volute | Allows trapped air to escape during filling |
| Foot valve or check valve | Seated and holding liquid in the suction line | Leaking foot valve drains the suction line and requires re-priming after every stop |
| Shaft rotation direction | Matches the rotation arrow on the pump casing | Wrong rotation prevents pressure buildup and can damage internal components |
Step-by-Step Priming Procedure
Method 1: Manual Fill Through Priming Port
This method works for smaller vertical inline pumps with a priming plug or fill connection at the top of the volute.
- Close the discharge isolation valve to reduce motor starting load.
- Open the suction isolation valve fully.
- Remove the priming plug or open the vent valve at the highest point of the pump casing.
- Pour clean liquid into the priming port using a funnel or connect a hose from a pressurized source.
- Continue filling until liquid flows steadily from the vent port with no air bubbles.
- Close the vent valve or reinstall the priming plug with thread sealant tape.
- Confirm the pump casing and suction line remain full for at least 30 seconds before starting the motor.
- Start the pump and slowly open the discharge valve while monitoring pressure and motor current.
Method 2: Vacuum Priming for Suction Lift Installations
Larger pumps or systems with long suction runs may require a vacuum pump or ejector to evacuate air and draw liquid into the pump casing.
- Connect a vacuum pump or ejector to the priming connection on the pump volute or suction line high point.
- Close the discharge valve and open the suction valve fully.
- Start the vacuum pump and monitor the vacuum gauge until it reaches 15–20 inches of mercury or until liquid appears at the vacuum discharge.
- Close the vacuum isolation valve, stop the vacuum pump, and disconnect the hose.
- Verify that the pump casing pressure gauge (if installed) shows positive pressure equal to the suction head available.
- Start the pump motor and open the discharge valve gradually.
Method 3: Flooded Suction Installations
Pumps installed below the liquid source level typically self-prime as liquid flows into the pump by gravity.
- Open the suction valve fully and allow liquid to fill the pump casing.
- Open the vent plug at the top of the volute and wait for liquid to flow out, confirming complete air removal.
- Close the vent plug securely.
- Close the discharge valve or leave it slightly cracked open.
- Start the pump and open the discharge valve to the operating point.
Startup Verification After Priming
A properly primed pump should build discharge pressure within 5–10 seconds of motor start. Use these field checks to confirm successful priming:
- Discharge pressure gauge: Should reach the expected pressure for the system head within 10 seconds. No pressure or low pressure indicates loss of prime or wrong rotation.
- Motor current: Should stabilize near the nameplate full-load amperage for the operating flow. High current suggests closed discharge valve or wrong rotation. Low current suggests loss of prime.
- Pump noise and vibration: Smooth operation with minimal noise. Rattling, cavitation noise, or excessive vibration indicates air entrainment or suction problem.
- Flow delivery: Measure flow at the discharge point or downstream meter to confirm the pump meets the design duty.
- Seal or packing condition: Minor weeping from mechanical seals or packing is normal during startup; excessive leakage indicates dry running damage or misalignment.
Common Priming Mistakes and How to Avoid Them
Running the pump dry to “pull prime”: Centrifugal pumps cannot self-prime when completely empty. Running dry for more than 15–30 seconds damages seals, bearings, and internal clearances. Always fill the casing before starting.
Ignoring air pockets in the suction line: Suction piping with elbows, tees, or reducers at elevations above the pump inlet will trap air even after the pump casing is full. Install air release valves at high points or re-route the piping with a continuous upward slope.
Starting with the discharge valve wide open: Opening the discharge valve fully before startup increases motor starting load and can trip overload protection. Start with the valve closed or slightly open, then adjust to the operating point after pressure builds.
Not checking foot valve condition: A leaking foot valve allows the suction line to drain after shutdown, requiring re-priming before every start. Replace foot valves that do not hold a full column of liquid for at least 15 minutes after filling.
Wrong shaft rotation: Three-phase motors can run backward if two power leads are reversed. Backward rotation prevents pressure buildup and looks like a priming failure. Check rotation direction during commissioning and after any electrical work.
System-Specific Priming Considerations
Fire pumps: NFPA 20 requires fire pumps to be installed in flooded suction arrangements whenever possible. If suction lift is unavoidable, the system must include automatic priming equipment that maintains prime without operator intervention. Test priming function during quarterly flow tests.
HVAC and chilled water pumps: Closed-loop systems require one-time priming during initial fill and after maintenance. Use the system fill connection and expansion tank to pressurize the loop and purge air through manual or automatic air vents at high points.
Booster pumps with variable frequency drives: VFD-controlled pumps may start at reduced speed, which extends the time required to build pressure after priming. Monitor startup for 30–60 seconds before concluding that priming failed.
Sewage and solids-handling pumps: Priming with dirty liquid or through a priming port can introduce debris that clogs the volute or impeller. If possible, prime with clean water first, then switch to process liquid after verifying proper operation.
FAQs
How long can I run the pump without prime before damage occurs?
Most vertical inline pumps with mechanical seals will suffer seal face damage within 15–30 seconds of dry running. Pumps with packing may tolerate 30–60 seconds, but bearing and wear ring damage begins immediately. Stop the motor as soon as you confirm no discharge pressure is building.
Why does my pump lose prime during operation?
Loss of prime during operation usually indicates air entering through a suction leak, vortexing at the suction intake, or vapor formation due to low NPSH margin. Check suction flange gaskets, mechanical seal condition, suction line fittings, and source liquid level.
Can I use a garden hose to fill the pump for priming?
Yes, as long as the hose connection provides enough flow to fill the casing and the water source is clean. For large pumps or long suction lines, a garden hose may take 10–20 minutes to complete the fill. A larger diameter hose or pressurized source speeds up the process.
Do I need to re-prime after every shutdown?
Only if the suction line drains when the pump stops. Systems with flooded suction or a working foot valve remain primed between cycles. Systems with suction lift and no foot valve must be re-primed before each start.
What should I do if the pump will not hold prime overnight?
Inspect the foot valve or check valve for debris, wear, or improper seating. Test by filling the suction line and monitoring the liquid level for 24 hours. If the line drains, replace the foot valve or add a check valve closer to the pump inlet.
Can I install an automatic priming system on an existing pump?
Yes. Vacuum-assist priming systems, air ejectors, and priming tanks can be retrofitted to existing suction lift installations. Consult the pump manufacturer or a qualified system designer to confirm compatibility with your pump model and suction piping arrangement.
Conclusion
Priming a vertical inline pump correctly before startup prevents dry running damage, ensures reliable pressure delivery, and extends seal and bearing life. Confirm suction line configuration, vent plug access, and foot valve condition before filling the casing. Verify successful priming by checking discharge pressure, motor current, and flow delivery within the first 30 seconds of operation. If the pump loses prime during operation or will not hold prime between starts, inspect the suction system for air leaks, vortexing, or foot valve failure before attempting further startups.
